TF6002 - 2A, 26V Synchronous Rectified Step-Down Converter

Product Type: DC-DC Regulator
Current Status: Release

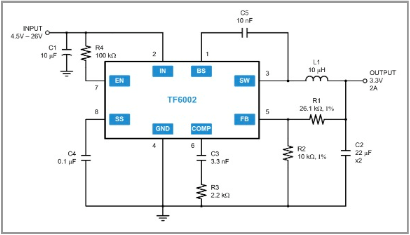

Product Overview
The TF6002 is a monolithic synchronous buck regulator featuring integrated 130 mΩ MOSFETs that provide continuous 2A output load current. It operates over a wide 4.5V to 26V input voltage range and provides output voltage from 0.923V to 23V at up to 93% efficiency. Its current mode control circuitry provides fast transient response and cycle-by-cycle current limit.
The TF6002 operates at fixed 340 kHz switching frequency. It features programmable soft-start which prevents inrush current at turn-on. In shut-down mode it draws only 3 μA (MAX).
The TF6002 is offered in 8-pin SOIC narrow package. It operates over an extended -40 °C to +85 °C temperature range.

Features

• 2A continuous output current
• Wide input voltage range: 4.5V to 26V
• Wide output voltage range: 0.923V to 23V
• High, >90%, efficiency (VIN = 5V, 0.15A < IL < 2A) enabled by integrated 130 mW MOSFET switches
• Operates at fixed 340 kHz frequency for small filter size
• 3 μA (MAX) shut-down supply current
• Programmable soft-start, cycle-by-cycle over-current protection and input under-voltage lockout
• Industrial temperature range: -40 °C to +85 °C
• Drop-in replacement for MP2305
